Model No.: Max 400
We focus in the research and development of small Wind turbines and wind solar hybrid power generation system.
Our main products: Mini series, Max series, V-Max series
Max 400W(12V/24V), 600W(24V/48V)
V-Max 1KW(24V/48V), 5KW(48V/110V/220V/380V)

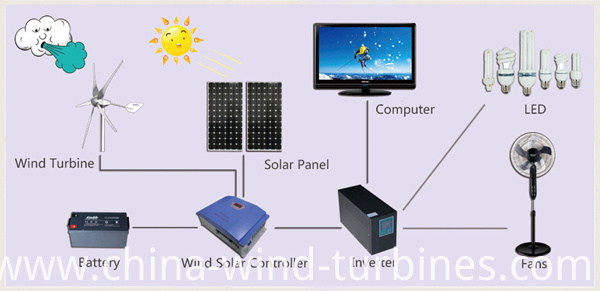

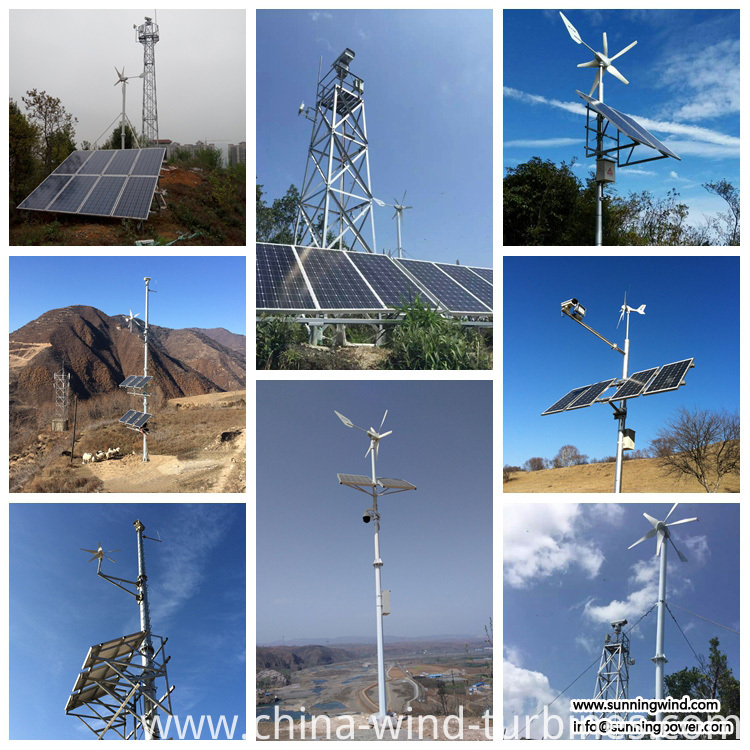

Wind solar power supply system widely used in off-grid and on-grid ower generation system, communication base stations, CCTV, highway monitoring, hybrid power street lights, household power supply and various types of electricity independent power system, at the same time, the company provides all types of wind and solar power systems engineering and hybrid power street lights project installation and consulting services.The company introduced the UK Wind Turbine professional design concept with advanced manufacturing technology, and aims to build a world-class leader of small wind turbines.
1. Low start-up wind speed
Low wind speed series wind turbines generate more than 60% effective power than the same rotor diameter wind turbine annually.
2. High-efficient Generator
Three-phase permanent magnet synchronous wind turbine, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
3. Unique Power Management System
Built-in a new intelligent controller, monitoring the wind turbine operation in real-time MPPT(Maximum Power Point Tracking) charge.
4. Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at dB at 13m/s/.
5. Perfect Wind Wheel System
The wind turbine system wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably.
6. Unique Design Of The Rudder
Wind turbine system rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation...

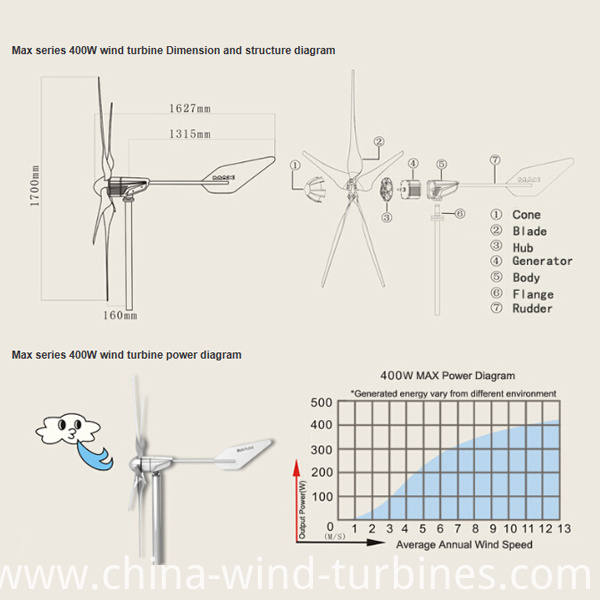

|Rated Capacity||400 watts|
|Shipping Dimensions||770x 410x 200 mm (36kg)|
|Mount||1.5 in schedule 40 1.9 in (48 mm) OD pipe|
|Start-Up Wind Speed||1.5 ( m/s)|
|Cut-In Wind Speed||2.0(m. s)|
|Voltage||12, 24 VDC|
|Blades||5 PCS Nylon Fiber|
|Overspeed Protection||Electronic torque control|
|Kilowatt Hours per Month||32KWh/mo at 3.2 m/s|
|Survival Wind Speed||35 m/s|
|Warranty||3 year limited warranty|
Contact us to get suggestion for the Wind Generator turbine power supply system:
Contact us if you need more details on Wind Generator Turbine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Small Wind Generator Turbine、Small Scale Wind Generator Turbine. If these products fail to match your need, please contact us and we would like to provide relevant information.
