Home > Products > Max Series Wind Turbine > Others Max Series Wind Turbine > Sunning DC Wind Generator 24V Hybrid Power Supply System

Sunning DC Wind Generator 24V Hybrid Power Supply System

2000 Sets/Month
Place of Origin:
Supply Ability:
2000 Sets/Month
  • Ms. Ruiyan Ding

Basic Info

Model No.:  Max 400

Product Description

Model NO.: Max 400 Number of Blade: Multiple-Blade Stress Way of Blade: Resistance Phase: Three Phase Rated Capacity: 400W Start-up Wind Speed: 1.5 ( M/S) Voltage: DC 12/24 Shipping Dimensions: 1710X 560X 320 mm 36kgs) Survival Wind Speed: 35 M/S Trademark: Sunning Specification: 1710*560*320mm HS Code: 8502310000 Output Type: DC Rotating Shaft: Horizontal Power: 400W Certification: CE, RoHS Max Capacity: 450W Cut-in Wind Speed: 2.0(M/S) Weight: 33 Kgs Kilowatt Hours Per Month: 32kwh/Mo at 3.2 M/S Warranty: 3 Year Limited Warranty Transport Package: Foam, Carton, Water Proof File Origin: China Sunning dc Wind Generator 24v hybrid power supply system

We focus in the research and development of small Wind turbines and wind solar hybrid power generation system.
 Sunning DC Wind Generator 24V Hybrid Power Supply System

Our main products: Mini series, Max series, V-Max series
Mini 300W(12V/24V)
Max 400W(12V/24V), 600W(24V/48V)
V-Max 1KW(24V/48V), 5KW(48V/110V/220V/380V)
Sunning DC Wind Generator 24V Hybrid Power Supply System

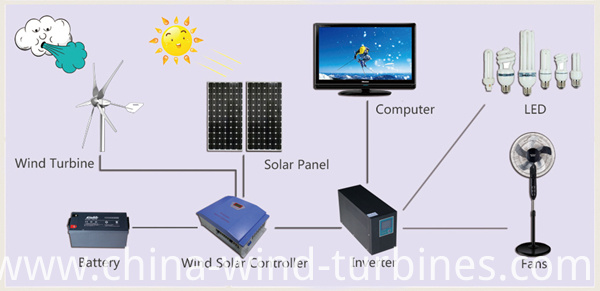

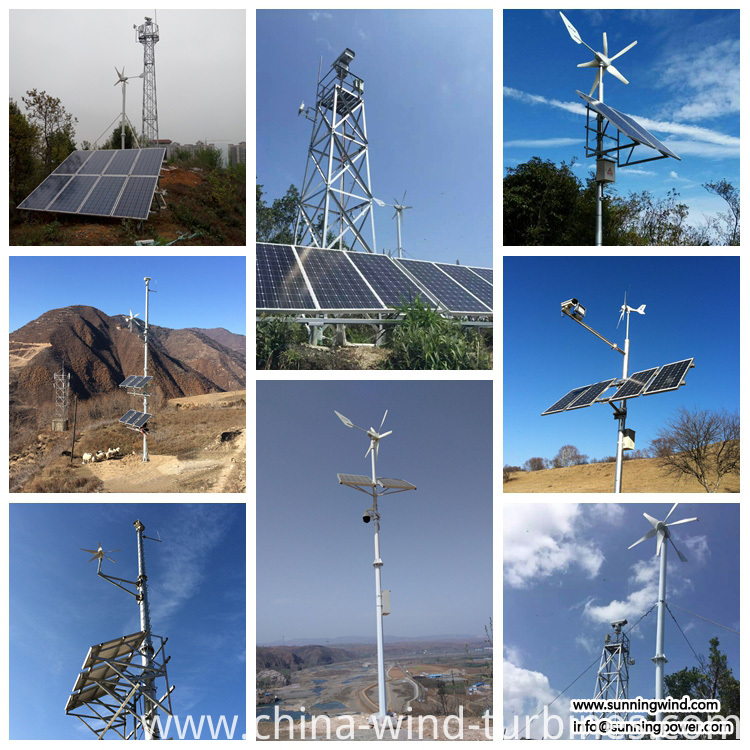

Wind solar power supply system widely used in off-grid and on-grid ower generation system, communication base stations, CCTV, highway monitoring, hybrid power street lights, household power supply and various types of electricity independent power system, at the same time, the company provides all types of wind and solar power systems engineering and hybrid power street lights project installation and consulting services.The company introduced the UK Wind Turbine professional design concept with advanced manufacturing technology, and aims to build a world-class leader of small wind turbines.Sunning DC Wind Generator 24V Hybrid Power Supply System

1. Low start-up wind speed
Low wind speed series wind turbines generate more than 60% effective power than the same rotor diameter wind turbine annually.

2. High-efficient Generator
Three-phase permanent magnet synchronous wind turbine, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.

3. Unique Power Management System
Built-in a new intelligent controller, monitoring the wind turbine operation in real-time MPPT(Maximum Power Point Tracking) charge.

4. Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at dB at 13m/s/.

5. Perfect Wind Wheel System
The wind turbine system wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably.

6. Unique Design Of The Rudder
Wind turbine system rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation...

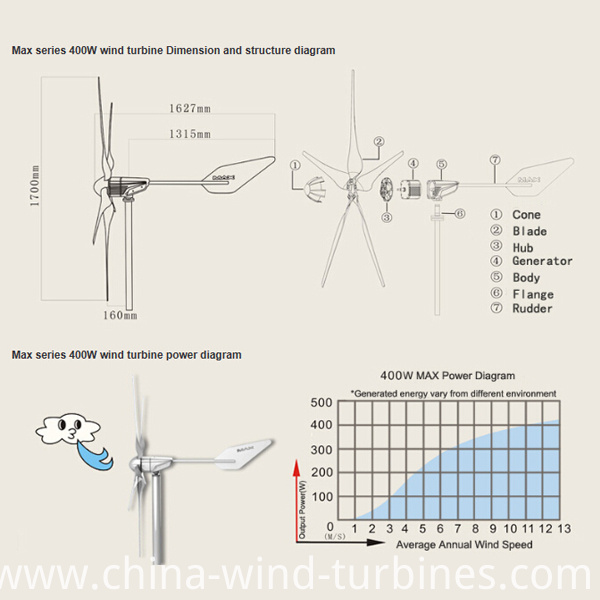

Rated Capacity 400 watts
Max Capacity 450watts
Rotor Diameter 1.6m
Weight 33 kgs
Shipping Dimensions 770x 410x 200 mm (36kg)
Mount 1.5 in schedule 40 1.9 in (48 mm) OD pipe
Start-Up Wind Speed 1.5 ( m/s)
Cut-In Wind Speed 2.0(m. s)
Voltage 12, 24 VDC
Body Cast aluminum
Blades 5 PCS Nylon Fiber
Overspeed Protection Electronic torque control
Kilowatt Hours per Month 32KWh/mo at 3.2 m/s
Survival Wind Speed 35 m/s
Warranty 3 year limited warranty

Contact us to get suggestion for the Wind Generator Turbine power supply system:
Sunning DC Wind Generator 24V Hybrid Power Supply System

Contact us if you need more details on DC Wind Generator 24V. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wind Generator 24V、DC Wind Turbine 24V. If these products fail to match your need, please contact us and we would like to provide relevant information.
