Model No.: Max 400
Mini 5 small-scale Wind Generator advantages:
1. Low start-up wind speed
Low wind speed series small Wind turbines generate more than 30% effective power than the same rotor diameter wind turbine annually.
2. High-efficient generator system
Three-phase permanent magnet synchronous Small Wind Generator, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class h insulation.
3. PWM power management system
Built-in a new intelligent controller, monitoring the wind turbines operation in real-time PWM(maximum power point tracking) charge.
4. Noise reduction innovative technology
Start and product electricity at the 1.5m/s, noise only at dB at 13m/s/.
5. Perfect wind wheel system
The Wind Turbine Generator wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably.
6. Unique design of the rudder
Small wind turbine generator rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.
|Rated Capacity||300 watts at 28 mph (12.5 m/s)|
|Max Capacity||350 watts|
|Shipping Dimensions||770x 410x 200 mm (33kg)|
|Mount||1.5 in schedule 40 1.9 in (48 mm) OD pipe|
|Start-Up Wind Speed||1.5 ( m/s)|
|Cut-In Wind Speed||2 (m/s)|
|Voltage||12, 24 V DC|
|Turbine Controller||Microprocessor-based smart internal regulator with Maximum Power Point Tracking|
|Blades||5 PC Nylon Fiber|
|Overspeed Protection||Electronic torque control|
|Kilowatt Hours per Month||30 KWh/mo at 3.2 m/s|
|Survival Wind Speed||35 m/s|
|Warranty||3 years limited warranty|

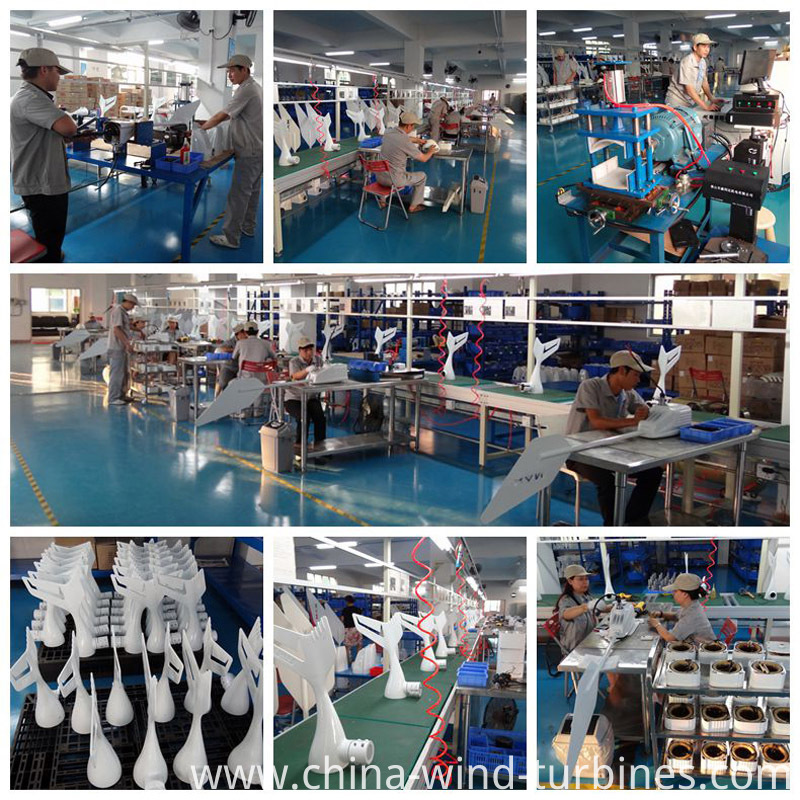

Factory And Shipping:

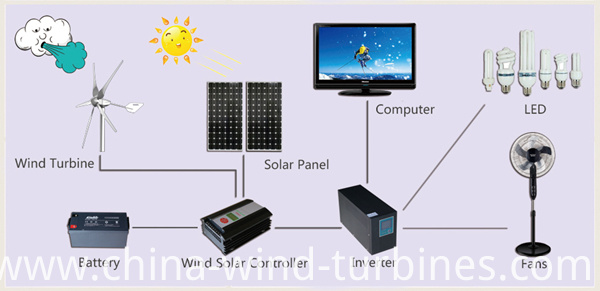

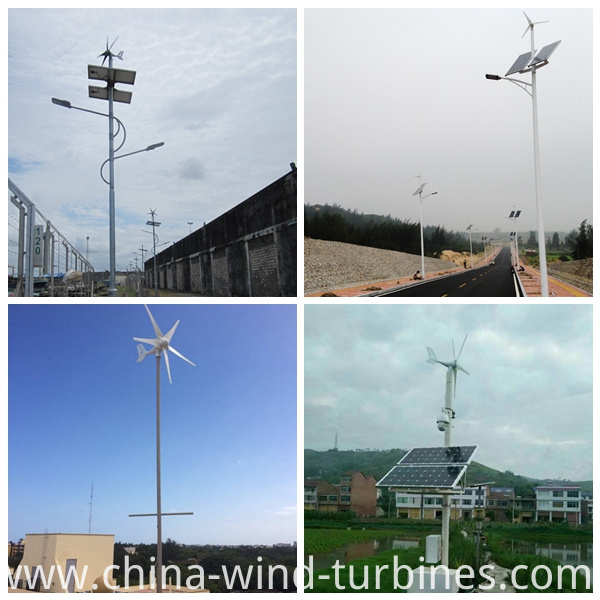

Sunning Solar Wind Hybrid system is widely used in street, landscaping, monitoring system, high speed road camera, communication base station, sailboat, gas station etc. The occasion is a time when the global renewable energy universal application, wind and solar energy industry has entered the era of rapid development, the company is willing to work with the community of people with lofty ideals to a win-win situation, seek common development, and create a better tomorrow.
Contact us to get suggestion and quotation for small wind-powered generator or Wind Solar Hybrid System.
